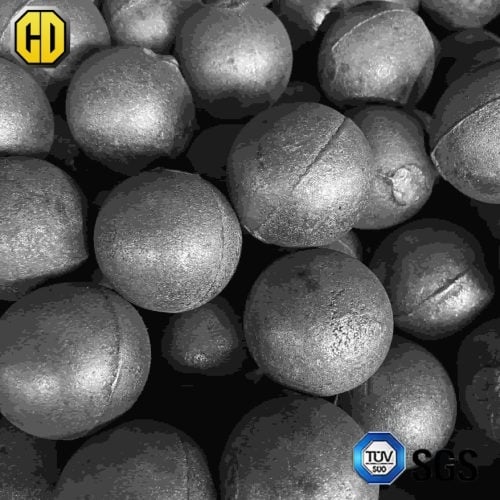

Grinding balls for initial grinding mills
Our Advantages
- Strong Initial Adaptability: Supports precise matching of full specifications (4.6mm-140mm) with initial mill models. Ball diameter ratios are customized based on mill volume and material characteristics to maximize initial grinding efficiency.
- High Batch Consistency: Adopting dual quality control and full-process traceability systems, the hardness, composition, and dimensional deviation of the same batch of steel balls are minimal. The mill runs smoothly after initial loading, avoiding equipment vibration or uneven grinding caused by media differences.
- Rapid Entry into Stable Phase: Relying on optimized alloy formulas and advanced heat treatment processes, the surface and core performance of the steel balls are balanced. No long "break-in" is needed after initial loading, quickly reaching design grinding efficiency and shortening the commissioning cycle.
- Low Initial Breakage Risk: Both high chrome cast balls and forged steel balls are verified by actual working conditions. In the initial stage, under complex conditions such as mill start-stop and material impact, the breakage rate is far lower than the industry average.
- Long-Term Costs: Excellent wear resistance and stable service life lay the foundation for low loss from the initial stage, avoiding production interruptions caused by frequent replenishment.
1.Initial Charge Grinding Balls—The Efficient Cornerstone for New Mill Startups
Media adaptation for the initial charge is critical, directly affecting the commissioning efficiency and long-term stable operation of the mill. It places extremely high demands on the batch consistency and condition adaptability of the steel balls. Chengda Initial Charge Grinding Balls are customized for new mill startup scenarios. Exclusive ball diameter ratios can be customized according to mill volume and material characteristics. After initial loading, they can quickly enter a stable grinding state without long run-in periods. Combining high wear resistance and low breakage advantages, they effectively reduce initial downtime and ball replenishment costs, building a foundation for efficient grinding in mining and building materials industries from the very beginning.

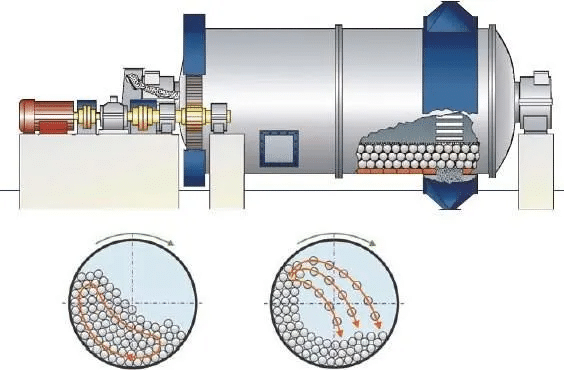

New/Primary Ball Mill Motion
2.Initial Charge Grinding Ball Parameters Comparison Table
| Parameter | High Chrome Cast Ball | Medium Chrome Cast Ball | Low Chrome Cast Ball) | CADI Ball |
|---|---|---|---|---|
| Diameter Range | 4.6mm-140mmmm | 4.6mm-140mmmm | 4.6mm-140mm | 4.6mm-140mm |
| Material Type | Chrome Alloy White Cast Iron | Chrome Alloy White Cast Iron | Chrome Alloy White Cast Iron | Carbide-containing Ductile Ironn |
| Chemical Composition (Typical) |
C: 2.0–3.2% Si:≤1.0% Mn:0.3-1.5% Cr: 10-28% P:≤0.06% S: ≤0.06% |
C: 2.0–3.2% Si:≤1.0% Mn:0.3-1.5% Cr: 4-8% P:≤0.08% S: ≤0.06% |
C：2.0–3.2% Si：0.4–0.9% Mn：0.3–1.5% Cr：1–3% P:≤0.1% S: ≤0.1% |
C：3.3–3.9% Si:2.4-3.0% Mn:1.4-1.9% Cr：0.2–0.5% P：≤0.05% S：≤0.05% |
| Hardness (HRC) | ≥60 | ≥48 | ≥48 | ≥55 |
| Impact Toughness | ≥5.5J/cm² | ≥3.5J/cm² | ≥3.0J/cm² | ≥15 J/cm²（High Energy Impact） |
| Breakage Rate | ≤0.5% | ≤1.0% | ≤1.0% | ≤0.5% |
| Application Scenarios | Large/Medium Cement Mills, Mine Secondary Initial Mills (High Wear/Low Impact) | Small/Medium Mine/Cement Raw Material Initial Mills (Medium Impact/Wear) | Small simple mills, trial production stages (Low intensity/Budget limited) | Large SAG Mills, Extreme Impact Initial Conditions (Requires High Toughness/Wear Balance) |
3.Production Process
- Cast balls (CADI balls): Patented alloy formula → Metal mold casting → Self-hardening & heat treatment → High-toughness martensitic structure
